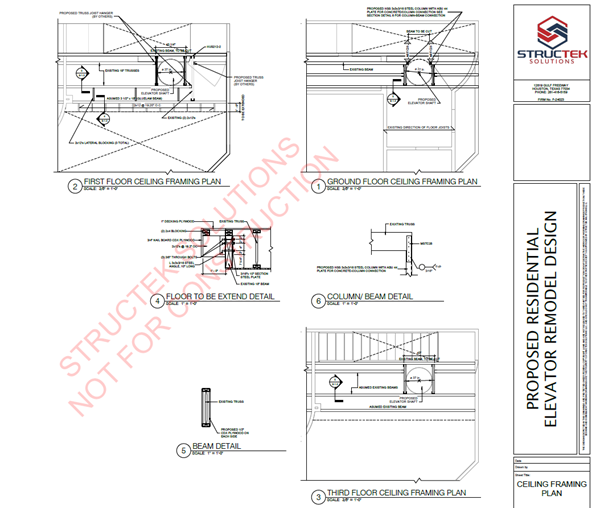

Residential Suction Elevator Design

Design Features:

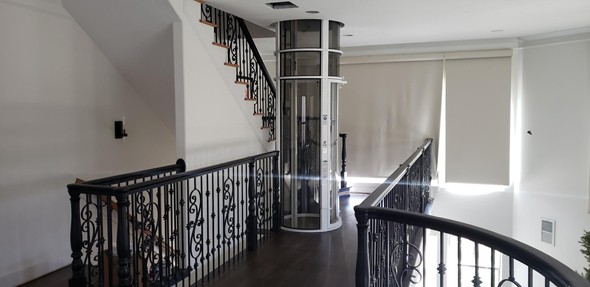

• Structure: The system consists of a vertical cylindrical shaft made of transparent or tinted polycarbonate or aluminum panels, offering a sleek and modern appearance that integrates well into various interior styles.
• Cabin: The elevator cabin is compact and circular, typically accommodating 1 to 3 passengers depending on the model, with clear walls for full visibility.
• Mechanism: The ascent is powered by a vacuum pump that creates negative pressure above the cab, gently lifting it. Descent is achieved by allowing air into the upper chamber, enabling gravity to lower the cab smoothly.

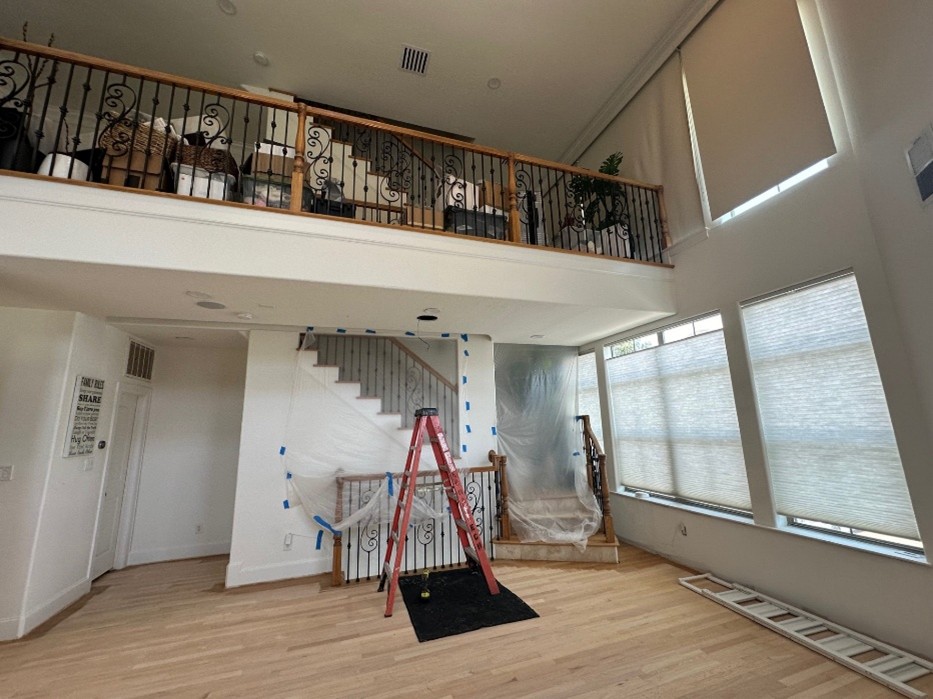

• Installation: Minimal construction is required, as the unit is self-supporting and does not require a machine room, pit, or hoist way. This makes it ideal for retrofits and space-constrained homes.
• Safety: Equipped with automatic braking systems, emergency lowering features, and battery backup, ensuring reliable and safe operation even during power outages.
